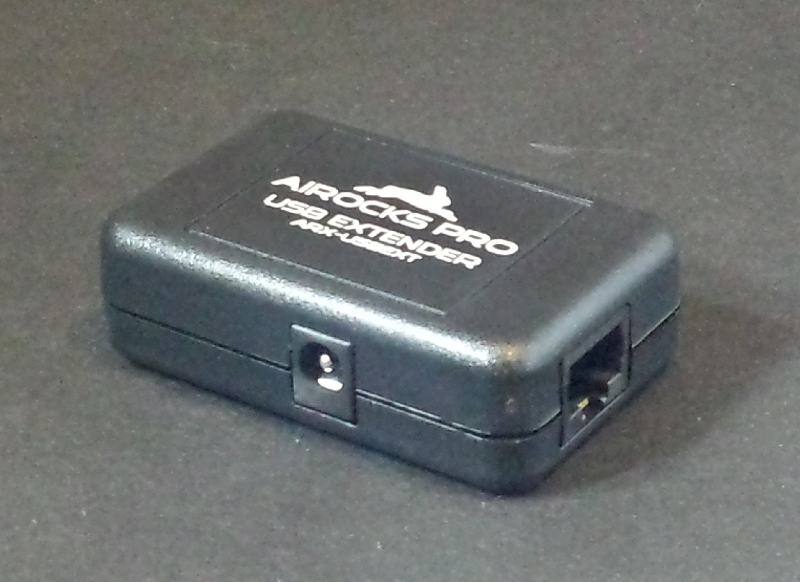

USB Extender and Configuration Tool (ARX-USBEXT)

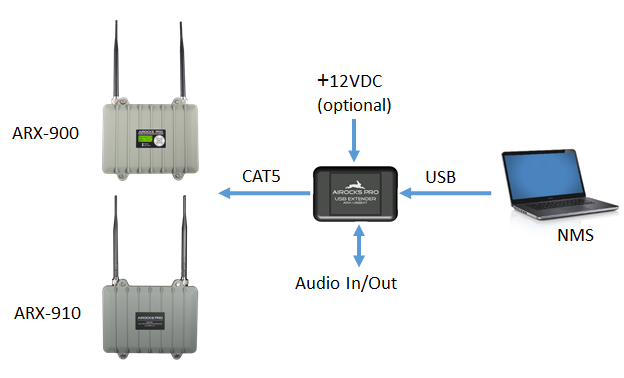

The ARX-USBEXT functionally equivalent to the ARX-900-BOB but in a much smaller (2.5" x 1.5 "x .75") plastic case. Includes audio input/output connector (1/8"), and DC power input connector (5.5mm x 2.1mm) so that radio can be powered by external AC/DC wall adapter. It also includes USB interface for a laptop connection to the Network Management System application. The ARX-USBEXT includes a 5V to 12V BOOST CONVERTER to provide +12VDC power to the ARX-9xx radio so that no AC power is required. This particularly helpful during initial installation and network debugging. The ARX-USBEXT includes the AiRocks Pro Network Management Software. USB Extender is designed primarily for ARX-910 configuration and control. However, it is also compatible with the ARX-900.

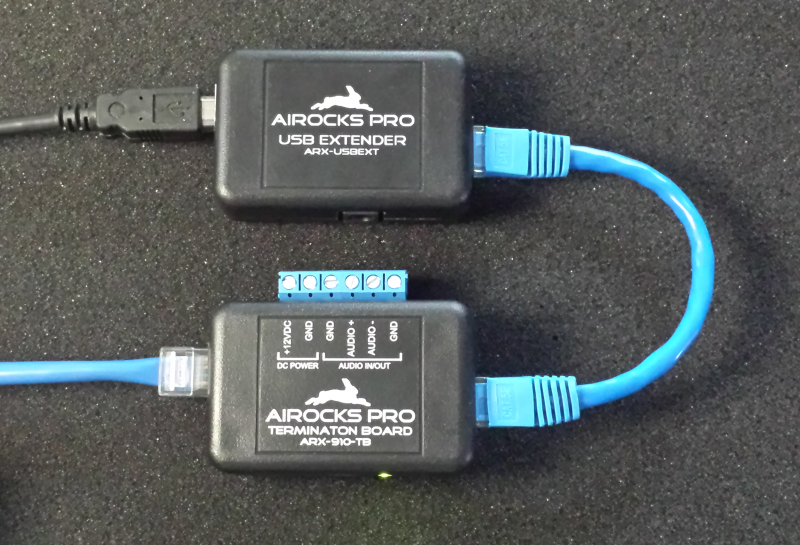

The USB Extender can also be used in combination with the ARX-910-TB Termination Board during initial installation and configuration of the ARX-910 radio in an installed sound application.


Features
- Funtionally equivalent to ARX-900-BOB
- Very small size (2.5"x1.5"x.75")
- CAT5 interface to ARX-9xx radio
- USB Interface to laptop running NMS
- 1/8" Line-level Audio Interface
- +12VDC Power Input (optional)
- +5V to +12VDC Boost Converter
- No AC Power Necessary
