Innovations in Pro-Audio Wireless Technology

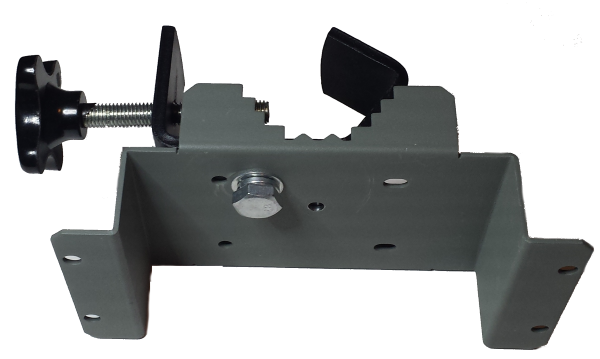

Pole Mounting Bracket

(included with ARX-900, optional with ARX-910)

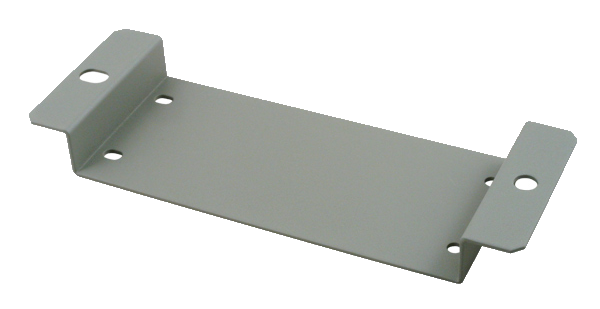

Optional Wall Mounting Bracket




Customer Modification to our standard Mounting Bracket for C-clamp Pole Mounting

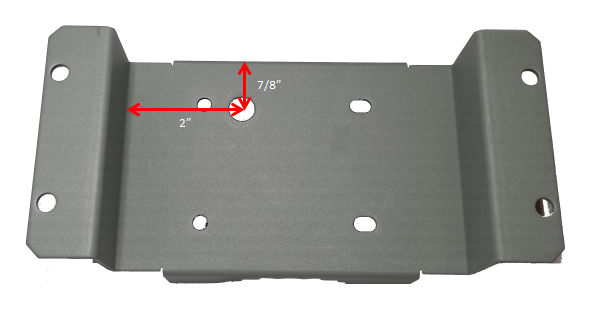

Below is a simple mod you can make to our standard mounting bracket that let's you use a C-clamp for quick, temporary installations on a pole or truss. Simply drill a 7/16" hole in the bracket that lets the center of the C-clamp align with the center of the speaker pole location. The hole shown here is 2" from the left edge, and 7/8" down from the top edge of the mounting bracket. The C-clamp shown is from American DJ.
mounting_bracket_mod
mounting_bracket_mod
mounting_bracket_mod
